CBS series
CBS-900LW
MODEL |
CBS-900W (Horizontal Sealer) |
CBS-900LW (Vertical Sealer) |
| VOLTAGE/SOURCE | 220 / 50 Hz | 220V / 50 Hz |
| POWER | 500W | 500W |
| SEALING SPEED | 0 - 12 M/min | 0 - 12 M/min |
| SEALING WIDTH mm | 10 | 10 |
| SEALING THICKNESS mm | 0.03 - 0.30 | 0.03 - 0.30 |
| TEMP. RANGE | 0 - 300°C | 0 - 300°C |
| CONVEYOR SIZE (WxL) mm | 140mm x 730mm | 140mm x 730mm |
| MAX. CONVEYOR LOADING | ≤ 2.5 kg | ≤ 2.5 kg |
| DIMENSIONS (LxWxH) mm | 820 x 380 x 300 | 820 x 370 x 560 |
| WEIGHT | 35 kg | 40 kg |
FRM 980 SERIES >> With Hot Ink Roll Printing
FRM-980AII
MODEL |
FRM-980AI (Horizontal Sealer) |
FRM-980AII (Vertical Sealer) |
| VOLTAGE | AC 220V / 50 Hz |
|
| MOTOR POWER | 50W |
|
| SEALING POWER | 600W |
|
| SEALING SPEED | 0 - 12M/min |
|
| SEALING WIDTH | 10 mm |
|
| TEMP. RANGE | 0 - 300°C |
|
| PRINTING CATEGORY | Solid ink |
|
| HEIGHT FROM SEALING CENTRE TO CONVEYOR | 10 - 40mm |
200 - 320 mm |
| FILM THICKNESS (MONOLAYER) | ≤ 0.08 mm |
|
| CONVEYOR SIZE | 930 x 150 mm |
1050 x 150mm |
| MAX SINGLE CONVEYOR LOADING | ≤ 1kg |
|
| MAX. OVERALL CONVEYOR LOADING | ≤ 3kg |
|
| DIMENSIONS (L x W x H) | 950 x 400 x 430 mm |
950 x 400 x 639 mm |
FRM 1100 SERIES >> With Hot Ink Roll Printing
 |
 |
FRM-1120 |
FRM-1120W |
MODEL |
FRM-1120L (Vertical Sealer) |

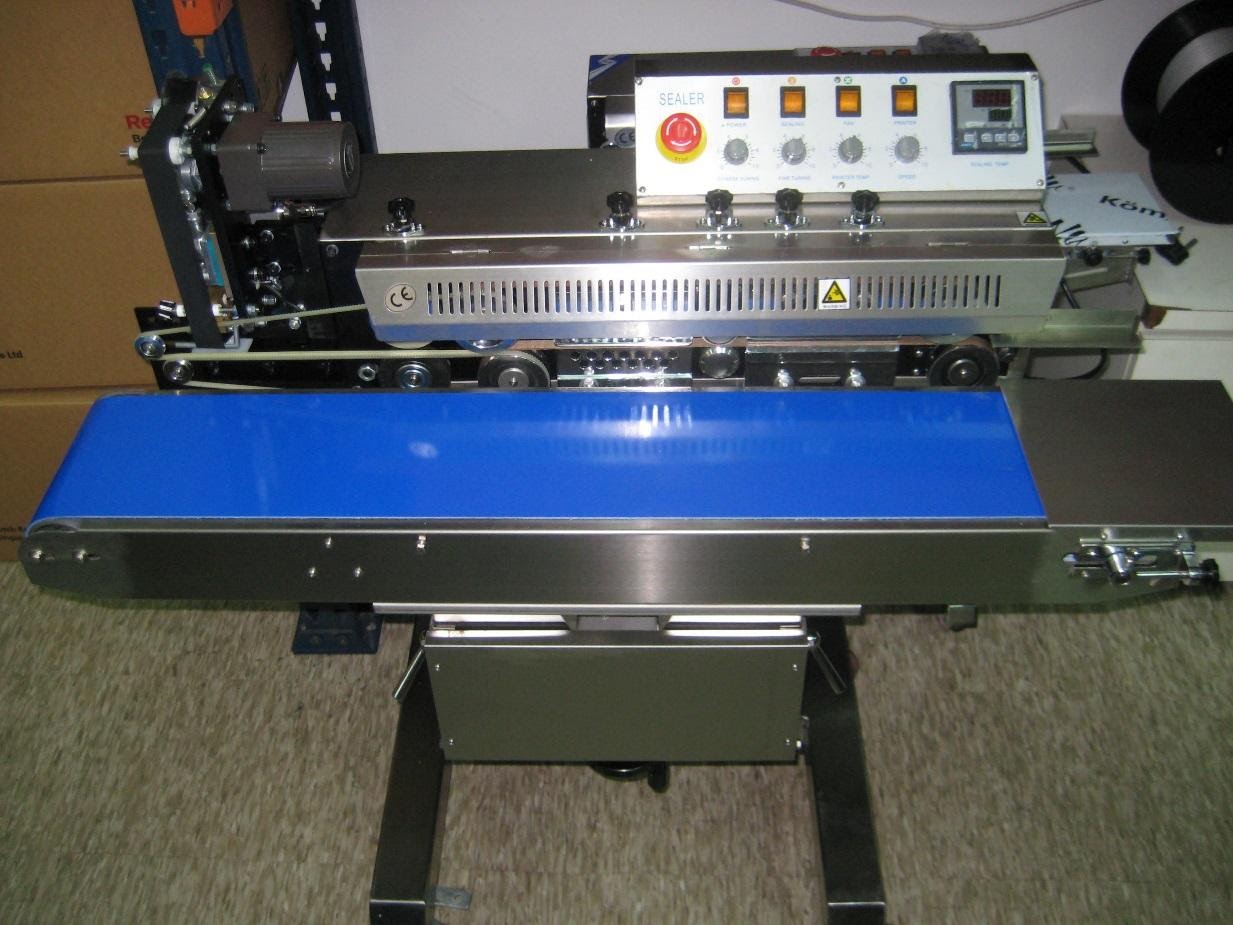

FRM-1120W (Horizontal Sealer) |
| VOLTAGE | AC 220V / 50 Hz | AC220V / 50 Hz |
| MOTOR POWER | 180W | 100W |
| HEATER POWER | 300W x 2 | 300W x 2 |
| SEALING SPEED | 0 - 8 M/min | 0 - 8 M/min |
| SEALING WIDTH | 8, 10 mm | 8, 10 mm |
| TEMP. RANGE | 0 - 300°C | 0 - 300°C |
| PRINTING CATEGORY | SOLID INK | SOLID INK |
| HEIGHT FROM SEALING CENTRE TO CONVEYING TABLE | 100 - 500mm | 20 - 80 mm |
| SINGLE THICKNESS | ≤ 0.18 mm | ≤ 0.10 mm |
| TABLE LENGTH | 1400 x 250 mm | 1100 x 205 mm |
| SINGLE CONVEYOR LOADING | 5 kg | 2.5 kg |
| OVERALL CONVEYOR LOADING | 15 kg | 7.5 kg |
| DIMENSIONS (LxWxH) mm | 1450 x 680 x 1480 mm | 1120 x 610 x 1030 |
| WEIGHT | 100 kg | 85 kg |
FRB-770 SERIES

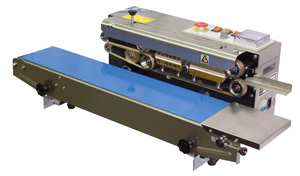

FRB-770I
MODEL |
FRB-770I (Horizontal Sealer) |
FRB-770II (Vertical Sealer) |
| VOLTAGE (V / Hz) | 220/50 AC 110/60 | 220/50 AC 110/60 |
| MOTOR POWER (W) | 50 | 50 |
| SEALING POWER (W) | 300 x 2 | 300 x 2 |
| SPEED (m/min) | 0 - 12 (0 - 16) | 0 - 12 (0 - 16) |
| SEALING WIDTH (mm) | 8 - 10 | 8 - 10 |
| DISTANCE FROM SEALING CENTRE TO CONVEYOR (mm) | 10 - 40 | 150 - 270 |
| TEMPERATURE RANGE (°C) | 0 - 300 | 0 - 300 |
| PRINTING TYPE | Steel wheel embossing (optional) | |
| CONVEYOR SIZE (LxW mm) | 840 x 180 | 840 x 180 |
| DIMENSIONS (LxWxH) mm | 840 x 380 x 270 | 840 x 380 x 550 |
| NET WEIGHT (kg) | 32 | 37 |

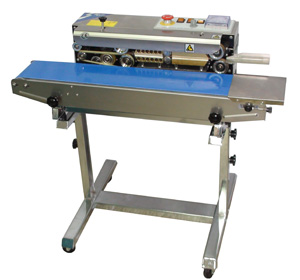

FRB-770III - Horizontal Sealer with Stand
MODEL |
FRB-770III |
| VOLTAGE (V / Hz) | 220/50 AC 110/60 |
| MOTOR POWER (W) | 50 |
| SEALING POWER (W) | 300 x 2 |
| SPEED (m/min) | 0 - 12 (0 - 16) |
| SEALING WIDTH (mm) | 8 - 10 |
| DISTANCE FROM SEALING CENTRE TO CONVEYOR (mm) | 10 - 40 |
| TEMPERATURE RANGE (°C) | 0 - 300 |
| PRINTING TYPE | Steel wheel embossing (optional) |
| CONVEYOR SIZE (LxW mm) | 840 x 180 |
| DIMENSIONS (LxWxH) mm | 840 x 550 x 800 |
| NET WEIGHT (kg) | 40 |
