HAND SEALERS
 |
 |
 |
PFS-200/300/400/500/200B |
WN-450H/600H/750H/900H |
W-305H |
MODEL |
VOLTAGE POWER |
MAX SEALING (L x W) mm |
HEATING TIME |
WEIGHT kg |
| PFS-200 | 220V / 300W | 200 x 2 | 0.2 - 1.5 sec | 2.7 kg |
| PFS-300 | 220V / 400W | 300 x 2 | 0.2 - 1.5 sec | 4.5 kg |
| PFS-400 | 220V / 600W | 400 x 2 | 0.2 - 1.5 sec | 5.5 kg |
| PFS-500 | 220V / 600W | 500 x 2 | 0.2 - 1.5 sec | 5.8 kg |
| PFS-200B | 220V / 1000W | 200 x 10 | 0.2 - 2.0 sec | 5.5 kg |
| WN-450H | 220V / 600W | 450 x 2.7 | 0 - 1.5 sec | 8.4 kg |
| WN-600H | 220V / 800W | 600 x 2.7 | 0 - 1.5 sec | 10.5 kg |
| WN-750H | 220V / 1000W | 750 x 2.7 | 0 - 1.5 sec | 11 kg |
| WN-900H | 220V / 1200W | 900 x 2.7 | 0 - 1.5 sec | 12.5 kg |
| W-305H | 220V / 380W | 300 x 5 | 0 - 1.5 sec | 3.3 kg |
hawo SEALING TONGS
 |
 |
hpl WSZ (Constant Heat Sealing Tong for thick materials, eg. Aluminium) |
hpl ISZ (Impulse Sealing Tong) |
MODEL |
hpl WSZ 300 |
hpl WSZ 400 |
hpl ISZ 300 |
hpl ISZ 450 |
hpl ISZ 630 |
| SEALING SEAM LENGTH | 300mm |
400mm |
300mm |
450mm |
630mm |
| SEAL SEAM WIDTH | 12 mm |
3mm |
|||
| SEAL MATERIAL | Aluminium foil bags |
polyethylene, polypropylene, PVC |
|||
| SEALING TIME | - |
stepless regular |
|||
| SEALING TEMPERATURE | 0 - 250°C |
- |
|||
| PRE-HEATING TIME | 5 min |
- |
|||
| HEATING | via stamp above and below |
- |
|||
| POWER | 350 VA |
250 VA |
|||
| VOLTAGE | 230V/50Hz (115V/60Hz) |
230V/50Hz (115V/60Hz) |
|||
| WEIGHT | 1.5 kg |
10kg ( weight of tong=1.4kg) |
|||

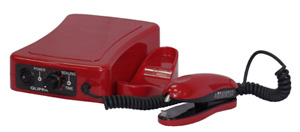

QUPPA Ultrasonic welder (Japan)
MODEL |
QUPPA Ultrasonic Welder |
| VOLTAGE | 110/220V |
| POWER (WATT) | 20W |
| FREQUENCY | 57KHz |
| CABLE LENGTH | AC side 1.8m / DC side 1.5m |
| DIMENSIONS | W179 x D183 x H66 mm (main unit) W36 x D125 x H54 mm (hand piece) |
| WEIGHT | 1 KGS (main unit) 210g (hand piece) |
| IDEAL | For PSP, OPS, HIPS, A-PET materials |
HAND CLAMPS
 |
 |
772DH |
150CS/150PS |
MODEL |
772DH |
150CS |
150PS |
| SOURCE (V) | 100-240 |
100-240 |
|
| SEAL POWER (W) | 14.5 |
25x2 |
15x1 |
| MAX. SEAL LENGTH (mm) | - |
150x15 |
150x2 |
| HEAT TEMP. (°C) | Low: 180 High: 210 |
130 |
100 |
| PACK DIMENSIONS (mm) |
235x130x40 |
28x28x14 |
|
i-bar sealer
W-450I
| MODEL | W-450I |
| VOLTAGE (V) | 100/110/220/240 |
| POWER (W) | 600W |
| MAX SEALING LENGTH (mm) | 0.8 |
| HEATING TIME (sec) | 0 - 1.5 |
| WEIGHT (kg) | 14 |
| DIMENSIONS (LxWxH mm) | 70 x 56 x 47 |
