*For shrink film, shrink bags or other packaging materials, please click here.

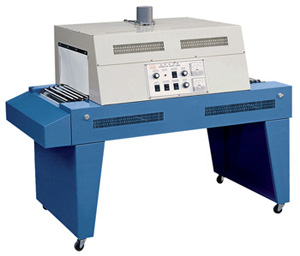

Shrink Tunnel
CN-4520A
MODEL |
CN-4015A |
CN-4520A |
| VOLTAGE/POWER | Single Phase 220V / 5kW |
Single Phase 220V / 6kW |
| TUNNEL DIMENSIONS (L x W x H) mm |
700 x 350 x 150 | 800 x 400 x 200 |
| MACHINE DIMENSIONS (L x W x H) mm |
1180 x 600 x 1050 | 1350 x 700 x 1100 |

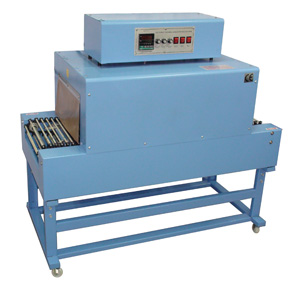

BSD-400
MODEL |
BSD-400 |
| POWER SUPPLY | 380-400V / 50 Hz, 3 phase |
| HEATER POWER | 6.5KW Adjustable |
| CONVEYOR SPEED | 0 - 10m/min |
| TUNNEL SIZE | 83 x 40 x 20 cm |
| SHRINK PRODUCT SIZE | 350 x 150 mm |
| CONVEYOR LOADING | 5 kg max |
| TUNNEL TEMPERATURE | 0 to 400°C | max
| Side/Bottom Heat Control | Adjustable |
| MACHINE SIZE | 120 x 64 x 124 cm |
| MACHINE WEIGHT | 70 kg |

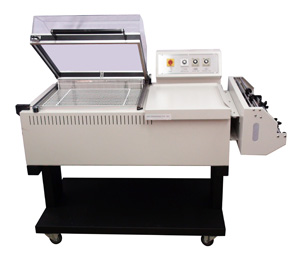

2-In-1 SHRINK WRAP MACHINE
FM-5540
MODEL |
FM-5540 |
MACHINE DIMENSIONS (LxWxH) |
1380 x 690 x 1065 mm |
MAX PACKAGING DIMENSIONS |
450 x 300 x 200 mm |
SEALING BARS DIMENSIONS |
550 x 400 mm |
PACKING SPEED |
500 x 800 pcs/hr |
NET WEIGHT |
125 kg |
CONSUMPTION |
4KW |
POWER |
1 Phase 110V/220V, 50/60Hz |
FQL Series
FQL-380
MODEL |
FQL-380
|
| POWER SUPPLY | 220V |
| IMPULSE POWER | 1000W |
| MAX SEALING SIZE | 500 x 350 mm |
| SEALING TIME | 0 - 2 sec |
| GROSS WEIGHT | 45 kg |
| DIMENSIONS | 780 x 640 x 430 mm |
