                               innovac series    >> InnoVac Vacuum Packing Applications

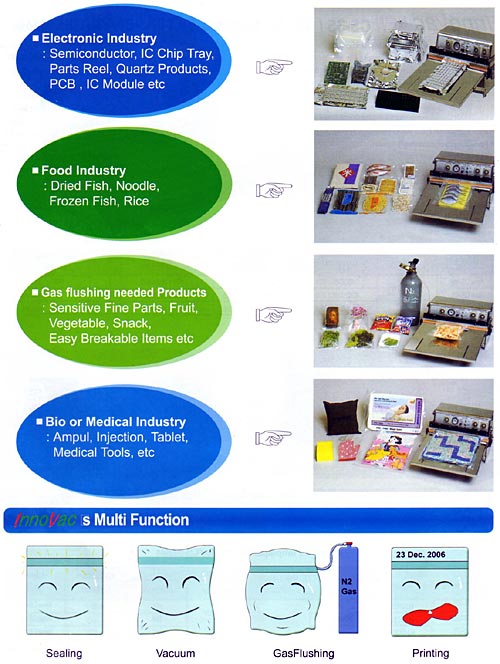

innovac application picture

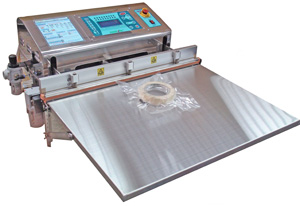

        innovac EV-45 / 60 / 80 Series    >>Table Top Nozzle Vacuum Sealer

- High durability by Air Cylinder Driven Movement (Compressed Air necessary)
- Neat and Clean 304 Stainless Steel Case
- Inside or high performance outside vacuum pump is available
- Multi function with digital controller: Seal + Vacuum(3modes) + Gas Flush(3modes) + 25 memory
- Easy and quick operation with compact size
- Separated vacuum pump gives low noice & vibration
- Wide application from Bio to Electronic industries
- Perfect and well considered safety design
- Compatible for Clean room

 EV-60E

MODEL
POWER
POWER CONSUMPTION
SEAL SIZE (LxW) mm
DIMENSION (WxDxH) mm
VACUUM PUMP (l/min)
EV-45E
220V,1Ph
50/60Hz
2.0kW
450x10
520x350x300
124
EV-60E
2.8kW
600x10
670x350x300
187
EV-80E
3.0kW
800x10
870x350x300
247

   Vacuum Pump Specification for EV-series
Type
Model
Vac'Capacity
(litre/min)
Max Vac
(Kpa)
Utility for Operation
Clean Room
Application
Applied Series
Electricity
Pneumatic
Ejector
VTX-20
124
95
N/A
5kgf/cm sq
O
EV-45E
VTX-30
187
O
EV-60E
VTX-40
247
O
EV-80E

    Other Vacuum Types: Oil-less, Oil Rotary vane, Diaphragm


                     Innovac EV-60E External Nozzle Type Vacuum Sealer

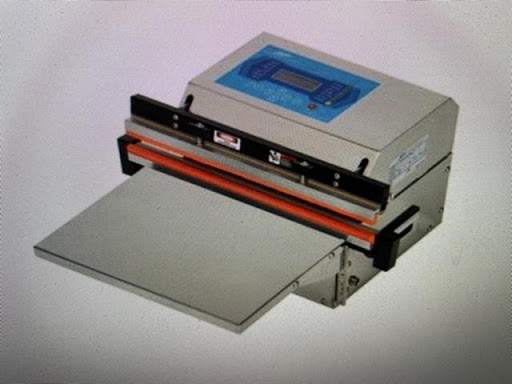

        innovac ECO-35 / 45E Series    >> Economy Vacuum Sealer

- High quality with reasonable price
- Pneumatic type with ejector vacuum pump
- Necessary for compressed air
- Application with new digital controller for easy operation: Seal & Vacuum
- Gas flushing optional
- Hot printer option available

EV-45/60/80

MODEL
ECO-35/45E
POWER AC 110/220V, 1Ph, 50/60 Hz
POWER CONSUMPTION 1.8 / 2.0 kW
SEALING SIZE (L x W) 360 x 10 - 450 x 10 mm
WEIGHT 20 / 22 kg
DIMENSIONS (WxLxH) 420 x 400 x 320 / 520 x 400 x 320 mm
VACUUM PUMP (1/Min) 124 / 187 (Ejector Type)


                     Innovac ECO-45E External Nozzle Type Vacuum Sealer

        innovac GVD-45 / 60 / 80 / 100 Series    >>Standing Nozzle Vacuum Sealer

- High durability by Air Cylinder Driven Movement
- Spray painted steel casing
- Built-in venturi vacuum pump ( For clean room use )
- Multi functionwith Digital Controller
- Seal + Vacuum + Gas Flushing ( 3 Modes )+ 25 memory station
- Easy and Quick Operationwith Compact Size
- Low Noise and Vibration
- Electric : 220Vac 50/60Hz
- FACTORY COMPRESSED AIR (6 BAR) IS REQUIRED FOR MACHINE OPERATION

 OPTIONAL :
- Double Heater   (For Thick Bag)
- Double Nozzle   (For 2 Bags or Faster Suction)
- Stainless Steel Casing

 nozzle floor standing type

MODEL
POWER
POWER CONSUMPTION
SEAL SIZE (LxW) mm
DIMENSION (WxDxH) mm
VACUUM PUMP (l/min)

GVD-45E

220V, 1Ph
50/60Hz

2.0

450 x 10

530x460x1020

124

GVD-60E

2.8

600 x 10

670x460x1020

187

GVD-80E

3.5

800 x 10

870x460x1020

247

GVD-100E

3.7

1000 x 10

1070x460x1020

312

   Vacuum Pump Specification for GVD-Series
Type
Model
Vac'Capacity
(litre/min)
Max Vac
(Kpa)
Utility for Operation
Clean Room
Application
Applied Series
Electricity
Pneumatic
Ejector

VTX-20

124

-95

NA

5kgf/cm sq

0

GVD-45E

VTX-30

187

0

GVD-60E

VTX-40

247

0

GVD-80E

VTX-50

312

0

GVD-100E


                     GVD Series Vacuum Sealer

        innovac CS-35 / 45 / 60 Series    >>Table Top Nozzle Vacuum Sealer

- Unique motor & solenoid driven movement
- 304 Stainless Steel Case
- High performance vacuum pump built in out side
- Multi function with digital controller: Seal + Vacuum(3modes) + Gas Flush(3modes) + 5 Memory
- Easy and quick operation with compact size
- Separated vacuum pump gives low noice & vibration
- Wide application from Bio to Electronic industries
- Perfect and well considered safety design
- Compatible for Clean room

 CS-35/45/60

MODEL
POWER
POWER CONSUMPTION
SEAL SIZE (LxW) mm
DIMENSION (WxDxH) mm
VACUUM PUMP (l/min)
CS-35L
220V,1Ph
50/60Hz
1.8kW
350x10
420x350x300
45
CS-45L
2.0kW
450x10
520x350x300
75
CS-60L
2.8kW
600x10
670x350x300
120

   Vacuum Pump Specification for EV-Series
Type
Model
Vac'Capacity
(litre/min)
Max Vac
(Kpa)
Utility for Operation
Clean Room
Application
Applied Series
Electricity
Pneumatic
Oil-less
HJ-245V
45
-82
110/220V
1Ph
N/A
O
CS-35L
HJ-275V
75
O
CS-45L
HJ-2120V
120
O
CS-60L
    Other Vacuum Types: Oil Rotary vane, Diaphragm


                     Innovac CS-45L Vacuum Sealer

        innovac GHV-600 / 800 / 1000 / 1200 Series    >>Horizontal and Vertical Nozzle Vacuum Sealer

- High Durability by Air Cylinder Driven Movement
(compressed air is necessary)
- Adjustable head angle and height (manual or auto)
- Available for heavy & large volume product packing
- High performance vacuum pump inside
- Multi function with digital/analogue controller:
Seal + Vacuum(3modes) + Gas Flush(3modes)
- Applicable into the FA system
- Wide application from Bio to Electronic industries
- Verified custom design option: Bag gripper, twin nozzle, table lifter
- Perfect and well considered safety design
- Compatible for Clean room

 GHV-600

MODEL
POWER
POWER CONSUMPTION
SEAL SIZE (LxW) mm
DIMENSION (WxDxH) mm
VACUUM PUMP (l/min)
GHV-600E
220V,1Ph
50/60Hz
2.0kW
600x10
750x650x1300
312
GHV-800E
2.8kW
800x10
940x650x1300
684
GHV-1000E
3.0kW
1000x10
1140x700x1300
1026
GHV-1200E
3.2kW
1200x10
1340x700x1300
1368

GHV1800option
Other options: Gas Flushing, Double Heater, Printer, Head Lefter, Twin Nozzle

   Vacuum Pump Specification for PRM-Series
Type
Model
Vac'Capacity
(litre/min)
Max Vac
(Kpa)
Utility for Operation
Clean Room
Application
Applied Series
Electricity
Pneumatic
Ejector
VTX-50
312
-95
N/A
5kgf/cm sq
O
GHV-600E
VTM-50
684
-92
O
GHV, GH
VTM-75
1026
O
GHV, GH
VTM-100
1368
O
GHV, GH
   *Other vacuum pump types: Oil-less, Oil Rotary vane, Diaphragm

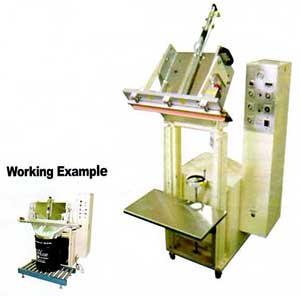

                     Innovac GHV-600E Vertical/Tiltable-Head Vacuum Sealer

        innovac GH-1800 / 2000 / 2500 / 3000 Series    >>Jumbo Nozzle Vacuum Sealer

- High Durability by Air Cylinder Driven Movement
(compressed air is necessary)
-The longest sealing size (max 3000mm)
- Perfect sealing and stable operation with patent technology
- High performance vacuum pump inside
- Available for jumbo volume or heavy product
- Multi function with analogue controller:
Seal + Vacuum(2modes) + Gas Flush(3modes)
- Applicable into the FA system
- Verified options: Bag gripper, twin nozzle etc.
- Compatible for Clean room

 GHV1800

MODEL
POWER
POWER CONSUMPTION
SEAL SIZE (LxW) mm
DIMENSION (WxDxH) mm
VACUUM PUMP (l/min)
GHV-1800H
220V,1Ph
50/60Hz
5.0kW
1800x10
2020x500x1500
By customer's request
GHV-2000H
6.0kW
2000x10
2220x500x1500
//
GHV-2500H
6.0kW
2500x10
2720x500x1500
//
GHV-3000H
7.0kW
3000x10
3220x500x1500
//

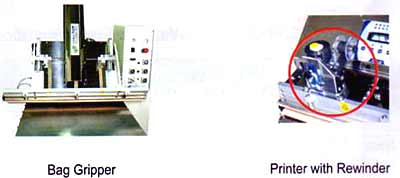

GHV1800option
Other options: Gas Flushing, Double Heater, Printer, Head Lefter, Twin Nozzle

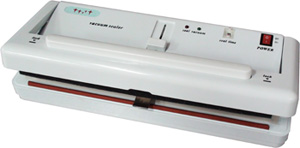

                                   SINBO  SERIES

DZ-280
DZ-280

MODEL
DZ-280
VACUUM 0.35 mpa
SEALING WIDTH 2 mm
SEALING LENGTH 40 - 280 mm
DIMENSIONS (LxWxH) 350 x 140 x 70 mm
WEIGHT 2.4 kg
